Caravan Battery Monitor

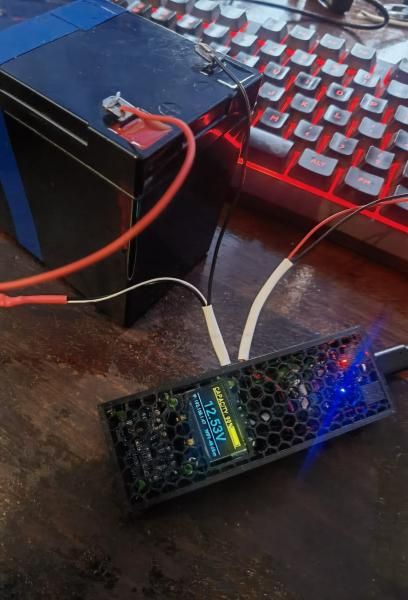

A small home-made gadget that shows how full my caravan's battery is: on its own little screen, on my phone and in my smart-home app. Clipped onto a car battery, it doubles as a tester that shows whether the car will start reliably.

Inside is an ESP32-C3 board with a 16-bit ADC and a two-colour OLED. In the caravan it watches a 100 Ah LiFePO4 battery and reports to Home Assistant. Clipped onto a car, it records how far the voltage falls while the engine cranks, which shows whether the battery or a cable is the weak link.

A monitor, not a charger. It only watches the battery, including while it charges; it never charges it. The charge percentage is calibrated for a LiFePO4 (lithium iron phosphate) battery, not other lithium-ion types. Voltage alone can only estimate the charge, so it still needs a current shunt to work fully. That's planned.

Where it's at

• Caravan monitor: working as a voltage-based monitor, showing an estimated charge on its screen and in Home Assistant, at home and on the road.
• Crank tester: working, as a separate piece of firmware on the same hardware.
• Still to do: a current shunt, which it needs to count amp-hours and give an accurate charge reading. It's planned, along with a temperature probe for winter trips.

Why a voltmeter needs 16 bits

My caravan (a Conqueror Companion off-road trailer) runs a 100 Ah, 12.8 V LiFePO4 battery. I wanted to see its charge from the house when the caravan is parked, and from my phone when we're away.

LiFePO4 makes that harder than it sounds. The discharge curve is so flat that most of the battery's capacity sits inside a few hundred millivolts, roughly 13.0 to 13.2 V. The ESP32's built-in ADC is too noisy and non-linear to split that band into useful steps.

An ADS1115 fixes it. At its ±6.144 V range one count is 0.1875 mV, which works out to about 1 mV at the battery after the voltage divider. That's fine enough to read the flat part of the curve, and fast enough to catch a starter motor pulling a car battery down, which is how the second use came about.

Hardware

Wiring

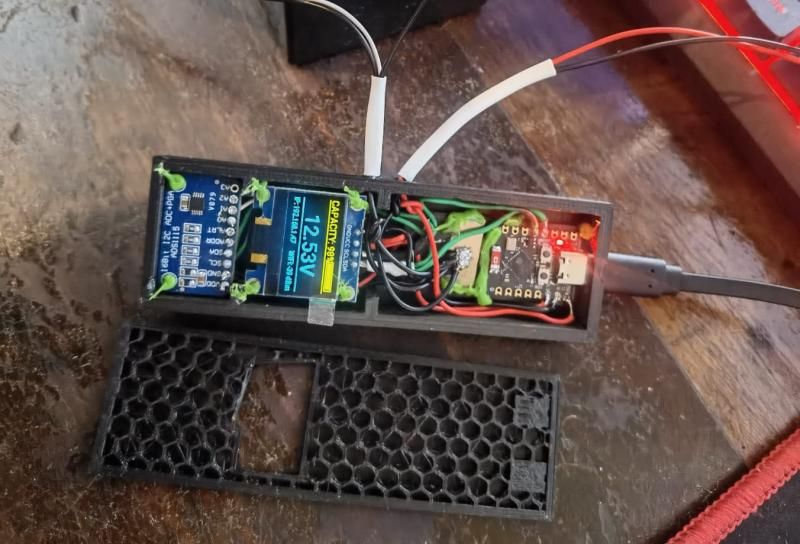

The OLED and ADC share one I²C bus.

The divider

The ADC sees V_batt × 2.2 / 12.2. A LiFePO4 battery at its 14.6 V absolute maximum gives 2.63 V at A0, and a car's 16 V worst case gives 2.89 V, both safely under the ADC's 3.3 V supply. The theoretical scale factor is 5.545; I trimmed it to 5.57 against a multimeter to absorb resistor tolerance.

The divider draws about 1 mA from the battery, which is around 26 mAh a day. That doesn't register on a 100 Ah battery.

Job one: the caravan monitor

In the caravan the unit runs ESPHome. It shows the battery on its own screen, serves a small web page, and feeds Home Assistant.

Turning voltage into a percentage

Resting voltage is mapped to state of charge using ten points I chose to follow the LiFePO4 curve, from 11.79 V at empty to 14.40 V at full charge. ESPHome interpolates in a straight line between neighbouring points, so the percentage slides smoothly instead of jumping between steps.

A voltage-only percentage is an estimate. It's only accurate with the battery resting, and it reads high while charging and low under a heavy load. Current sensing is on the list below.

Keeping the readings calm

• Voltage is sampled every second and averaged over the last 10 samples.
• The percentage is averaged again over 5 samples and clamped to 0–100%.

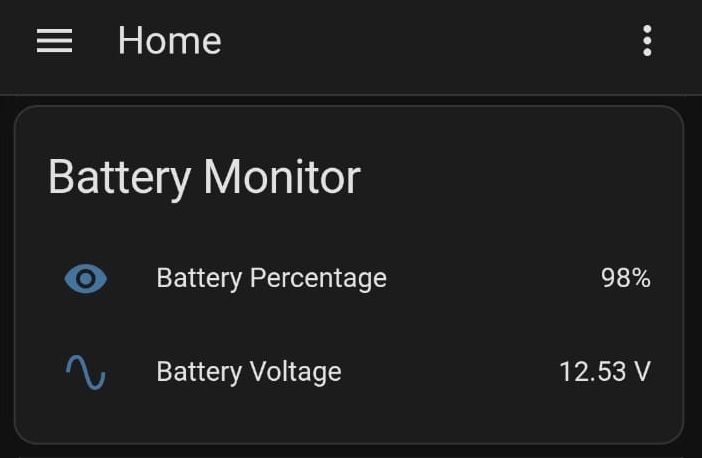

• Home Assistant only gets a new value when the voltage moves by 5 mV or the percentage by 1%, which keeps the history graphs readable and the database small.

Staying connected

The unit tries its networks in this order, so nothing needs reconfiguring between the driveway and a campsite:

1. Home Wi-Fi. Parked at home it joins the house network and appears in Home Assistant through the native API.
2. Phone hotspot. On the road it joins a phone's hotspot; a spare phone left in the caravan on USB power works well for this.
3. Its own access point. With nothing familiar in range it starts a password-protected network called Caravan-Battery-Fallback. Joining it opens a captive portal with the live readings, no internet needed.

On any of them, the built-in web page on port 80 shows voltage and charge in a browser.

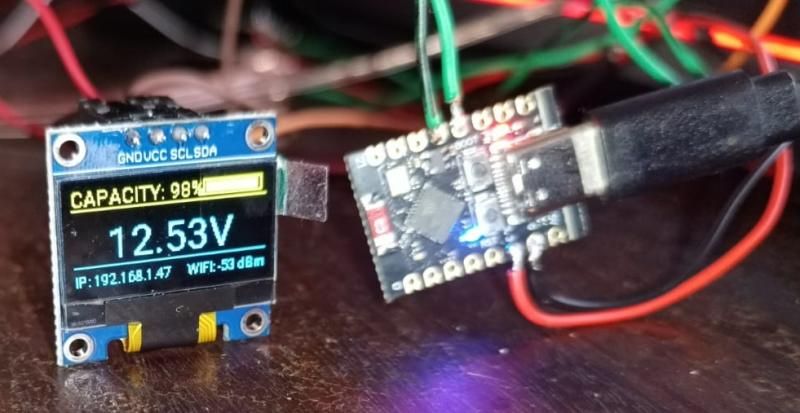

The screen

These cheap two-colour OLEDs are one panel with yellow pixels in rows 0–15 and blue below, and there's a visible gap on the glass where they meet. The layout keeps text away from that seam: charge and a battery bar in the yellow strip, the voltage large in the blue area, and the IP address and Wi-Fi signal along the bottom.

Job two: the crank tester

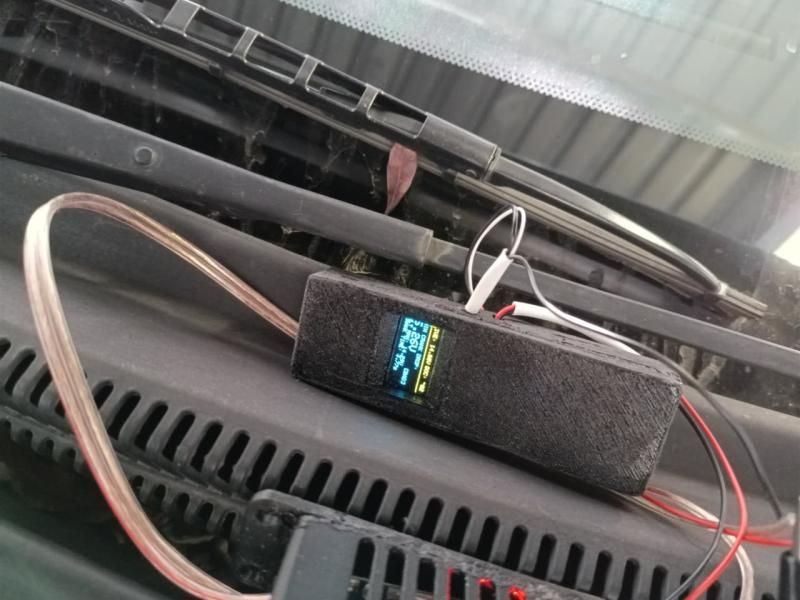

A multimeter is too slow to catch what a battery does when the starter motor engages. The dip lasts a fraction of a second, and it's the most honest test of a starting battery there is: a healthy battery holds its voltage up under that load, and a tired one collapses.

For this job the same hardware runs a separate Arduino sketch. The ADS1115 is set to its fastest rate of 860 samples per second and the sketch keeps a running record of the lowest and highest voltage it sees.

How a test runs

1. Resting reading. On power-up, with the engine off, it reads the battery and estimates charge on a lead-acid curve (11.8 V is empty, 12.7 V is full).
2. Crank. When the voltage drops below 11.4 V a timer starts, and the lowest reading is locked in.
3. Engine catches. The timer stops once the alternator lifts the voltage above 13.0 V, so the time shown runs from the start of cranking until the alternator takes over.
4. Charging. The highest voltage after start-up is kept as the alternator reading.

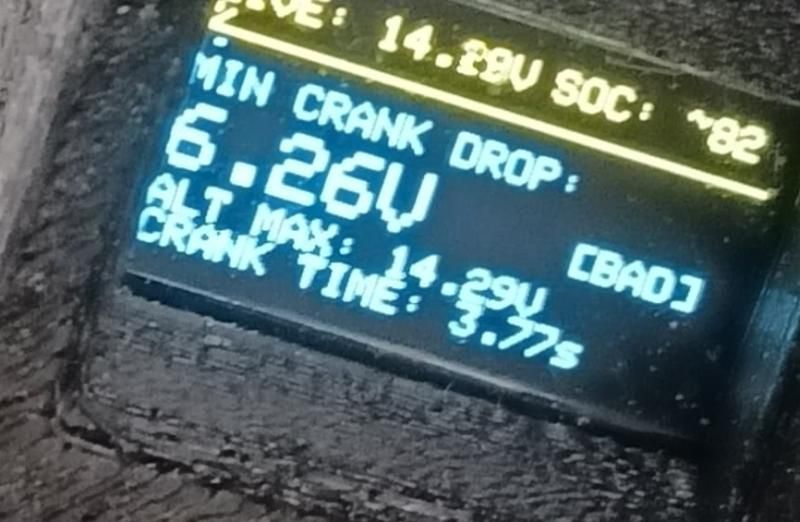

Reading the results

Rules of thumb for a 12 V lead-acid starting battery. A cold morning or a small battery on a big engine will pull the numbers down.

Finding a cable fault

A low reading doesn't always mean a bad battery. A corroded terminal or a tired cable adds resistance, and at starter-motor currents that resistance costs volts. Moving the clips between tests shows where the voltage is going:

1. Battery posts. Both clips on the battery terminals. This is the battery on its own.
2. Positive side. Positive clip on the starter motor's main terminal, negative on the battery post. This adds the positive cable and its connections.
3. Earth side. Positive clip on the battery post, negative on the engine block. This adds the earth strap and its connections.

If the battery-post test looks fine but one of the others comes out much lower, the missing voltage is being lost in that cable. As a rough guide, losing more than about half a volt on one side during a crank points to a connection to clean or a cable to replace.

Power it from a power bank for crank tests. If the tester is powered from a USB socket in the car, its ground is already tied to the chassis. Clipping the negative lead somewhere else then gives starter current a second path through the tester's thin wiring. With a power bank, the two test leads are its only connection to the car. Keep the fuse on the positive lead, and keep the leads clear of the fan and belts.

Build notes

Things that went wrong on the way, in case you're building something similar.

The percentage jumped around

My first version used if/else steps to turn voltage into a percentage. On a curve this flat, a 0.01 V wobble was enough to flip the display from 95% to 80%. Interpolating between calibration points fixed it.

ESPHome's calibration draws one straight line by default

The calibrate_linear filter defaults to method: least_squares, which fits a single straight line through all your points rather than following them. With my points that line put 12.5 V at about 44% instead of 10%, and read around 130% during a 14.4 V charge. Setting method: exact makes it interpolate point to point, which is what I wanted all along.

Noisy history graphs

Passing raw readings straight to Home Assistant gave jagged graphs and a steadily growing database. The moving averages and delta filters described above sorted that out.

The battery bar ran off the screen

During bulk charging the percentage went past 100 and the bar was drawn wider than its outline. The percentage is now clamped before it reaches the display.

What's next

• Current sensing. An INA226 shunt monitor, or a ready-made smart shunt, for proper amp-hour counting and a time-to-empty estimate. This is the real fix for voltage-based percentages.
• Temperature. DS18B20 probes in the battery box. LiFePO4 shouldn't be charged below 0 °C, so this matters on winter trips.
• A local alarm. A buzzer for low-voltage warnings when there's no phone or network around.
• Remote access. Tailscale or Nabu Casa, so the caravan can be checked from anywhere with signal.
• More caravan sensors. Fridge temperature and water tank level on the same node.
• One firmware. Fold the crank test into the ESPHome build behind a button, and redraw the screen less often during a test so it doesn't slow down sampling.

Code

The Wi-Fi details live in a separate secrets.yaml, referenced with !secret. Keep that file out of any public repository.

esphome:
  name: battery-monitor
  friendly_name: "Battery Monitor"

esp32:
  board: esp32-c3-devkitm-1
  framework:
    type: arduino

wifi:
  networks:
    - ssid: !secret home_wifi_ssid        # 1st choice: home network
      password: !secret home_wifi_password
    - ssid: !secret hotspot_ssid          # 2nd choice: phone hotspot on the road
      password: !secret hotspot_password
  ap:                                     # nothing known in range: own access point
    ssid: "Caravan-Battery-Fallback"
    password: !secret fallback_ap_password
  reboot_timeout: 15min
  power_save_mode: NONE
  fast_connect: true

captive_portal:

web_server:
  port: 80

logger:

api:
  reboot_timeout: 0s   # default is 15min, which reboots the unit when camping without Home Assistant

ota:
  - platform: esphome

i2c:
  sda: 8
  scl: 9
  scan: true
  id: bus_a

ads1115:
  - address: 0x48
    i2c_id: bus_a

sensor:
  - platform: ads1115
    multiplexer: 'A0_GND'
    gain: 6.144
    name: "Battery Voltage"
    id: batt_volt
    update_interval: 1s
    unit_of_measurement: "V"
    accuracy_decimals: 3
    filters:
      - multiply: 5.57          # divider ratio, trimmed against a multimeter
      - sliding_window_moving_average:
          window_size: 10
          send_every: 1
      - delta: 0.005

  - platform: template
    name: "Battery Percentage"
    id: batt_pct
    unit_of_measurement: "%"
    accuracy_decimals: 0
    update_interval: 1s
    lambda: |-
      return id(batt_volt).state;
    filters:
      - calibrate_linear:
          method: exact         # follow the curve point to point (default fits one straight line)
          datapoints:
            - 11.79 -> 0.0
            - 12.50 -> 10.0
            - 12.77 -> 30.0
            - 12.86 -> 50.0
            - 12.94 -> 70.0
            - 12.99 -> 80.0
            - 13.02 -> 95.0
            - 13.05 -> 97.0
            - 13.14 -> 99.0
            - 14.40 -> 100.0
      - lambda: |-
          if (x > 100.0f) return 100.0f;
          if (x < 0.0f) return 0.0f;
          return x;
      - sliding_window_moving_average:
          window_size: 5
          send_every: 1
      - delta: 1.0

  - platform: wifi_signal
    name: "WiFi Signal"
    id: wifi_rssi
    update_interval: 10s

text_sensor:
  - platform: wifi_info
    ip_address:
      id: wifi_ip
    ssid:
      id: wifi_ssid

font:
  - file: "gfonts://Roboto"
    id: font_tiny
    size: 9
  - file: "gfonts://Roboto"
    id: font_med
    size: 11
  - file: "gfonts://Roboto"
    id: font_bolt
    size: 22

display:
  - platform: ssd1306_i2c
    model: "SSD1306 128x64"
    address: 0x3C
    lambda: |-
      // Yellow strip (rows 0-15): percentage and battery bar
      it.printf(0, 2, id(font_med), "SoC: %.0f%%", id(batt_pct).state);
      it.rectangle(85, 3, 40, 10);

      float pct = id(batt_pct).state;
      if (pct > 100.0f) pct = 100.0f;
      if (pct < 0.0f) pct = 0.0f;
      float bar_width = (pct / 100.0f) * 36.0f;
      it.filled_rectangle(87, 5, (int)bar_width, 6);

      // Blue area (rows 16-63): voltage and network status
      it.line(0, 16, 128, 16);

      if (id(batt_volt).has_state()) {
        it.printf(64, 24, id(font_bolt), TextAlign::TOP_CENTER, "%.3f V", id(batt_volt).state);
      }

      it.line(0, 50, 128, 50);

      if (id(wifi_ip).has_state() && id(wifi_ip).state != "0.0.0.0") {
        it.printf(0, 53, id(font_tiny), "IP: %s", id(wifi_ip).state.c_str());
      } else {
        it.print(0, 53, id(font_tiny), "WiFi: Connecting...");
      }

      if (id(wifi_rssi).has_state()) {
        it.printf(128, 53, id(font_tiny), TextAlign::TOP_RIGHT, "Sig: %.0f", id(wifi_rssi).state);
      }

# secrets.yaml: keep this file out of any public repo (add it to .gitignore)
home_wifi_ssid: "your-home-network"
home_wifi_password: "your-home-password"
hotspot_ssid: "your-phone-hotspot"
hotspot_password: "your-hotspot-password"
fallback_ap_password: "at-least-8-characters"

#include <Wire.h>
#include <Adafruit_ADS1X15.h>
#include <Adafruit_GFX.h>
#include <Adafruit_SSD1306.h>

// --- OLED DISPLAY CONFIG ---
#define SCREEN_WIDTH 128
#define SCREEN_HEIGHT 64
#define OLED_RESET    -1
Adafruit_SSD1306 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, OLED_RESET);

// --- ADS1115 CONFIG ---
Adafruit_ADS1115 ads;

// --- RESISTOR DIVIDER CALIBRATION ---
const float R1 = 10000.0; // 10k Resistor from Battery Pos to ADS pin
const float R2 = 2200.0;  // 2.2k Resistor from ADS pin to GND
const float dividerRatio = (R1 + R2) / R2;

// --- DIAGNOSTIC VARIABLES ---
float currentVoltage = 0.0;
float lowestVoltage = 99.0;
float highestVoltage = 0.0;
float restingVoltage = 0.0;
int batterySOC = 0;

// Crank Timing Variables
unsigned long crankStartTime = 0;
unsigned long crankDuration = 0;
bool crankTracking = false;
bool crankFinished = false;

// Helper Function: Estimate State of Charge (SOC) - lead-acid resting curve
int estimateSOC(float volt) {
  if (volt >= 12.7) return 100;
  if (volt <= 11.8) return 0;
  return (int)((volt - 11.8) * 111.11);
}

void setup() {
  Serial.begin(115200);

  if(!display.begin(SSD1306_SWITCHCAPVCC, 0x3C)) {
    Serial.println(F("SSD1306 allocation failed"));
    for(;;);
  }
  display.clearDisplay();
  display.setTextColor(SSD1306_WHITE);

  ads.setGain(GAIN_ONE);
  ads.setDataRate(RATE_ADS1115_860SPS); // Maximize sampling rate

  if (!ads.begin()) {
    Serial.println("Failed to initialize ADS.");
    while (1);
  }

  // Grab initial baseline voltage for resting SOC
  delay(500);
  int16_t initial_adc = ads.readADC_SingleEnded(0);
  restingVoltage = ads.computeVolts(initial_adc) * dividerRatio;
  batterySOC = estimateSOC(restingVoltage);
}

void loop() {
  // 1. High-speed sampling
  int16_t adc0 = ads.readADC_SingleEnded(0);
  currentVoltage = ads.computeVolts(adc0) * dividerRatio;

  // 2. Track absolute minimum drop during crank
  if (currentVoltage < lowestVoltage && currentVoltage > 2.0) {
    lowestVoltage = currentVoltage;
  }

  // 3. Track max charging voltage from alternator
  if (currentVoltage > highestVoltage && currentVoltage > 13.0) {
    highestVoltage = currentVoltage;
  }

  // 4. Crank Duration Timing
  if (currentVoltage < 11.4 && !crankTracking && !crankFinished) {
    crankStartTime = millis();
    crankTracking = true;
  }
  if (currentVoltage > 13.0 && crankTracking) {
    crankDuration = millis() - crankStartTime;
    crankTracking = false;
    crankFinished = true;
  }

  // 5. Render Data aligned to Yellow/Blue boundaries
  display.clearDisplay();

  // --- YELLOW ZONE (Rows 0 to 15) ---
  display.setTextSize(1);
  display.setCursor(0, 2);
  display.print("LIVE: ");
  display.print(currentVoltage, 2);
  display.print("V");

  display.setCursor(76, 2);
  display.print("SOC: ~");
  display.print(batterySOC);
  display.print("%");

  // Boundary Separator Line
  display.drawFastHLine(0, 15, 128, SSD1306_WHITE);

  // --- BLUE ZONE (Rows 16 to 64) ---
  display.setCursor(0, 20);
  display.print("MIN CRANK DROP:");

  display.setCursor(0, 31);
  if (lowestVoltage > 20.0) {
    display.setTextSize(2);
    display.print("--.-- V");
  } else {
    display.setTextSize(2);
    display.print(lowestVoltage, 2);
    display.print("V");

    // Automatic Status Threshold Flags
    display.setTextSize(1);
    display.setCursor(92, 36);
    if (lowestVoltage >= 9.6)       display.print("[ OK ]");
    else if (lowestVoltage >= 8.5)  display.print("[WEAK]");
    else                            display.print("[BAD]");
  }

  // Alternator Charging Output
  display.setTextSize(1);
  display.setCursor(0, 48);
  display.print("ALT MAX: ");
  if (highestVoltage < 13.0) {
    display.print("--.-- V");
  } else {
    display.print(highestVoltage, 2);
    display.print("V");
  }

  // Starter Motor Crank Duration
  display.setCursor(0, 56);
  display.print("CRANK TIME: ");
  if (crankDuration == 0) {
    if (crankTracking) {
      display.print("RUNNING...");
    } else {
      display.print("--.-s");
    }
  } else {
    display.print((float)crankDuration / 1000.0, 2);
    display.print("s");
  }

  display.display();
}
